Muffler Rear

NOTE:

Removal steps in this procedure may contain installation details.

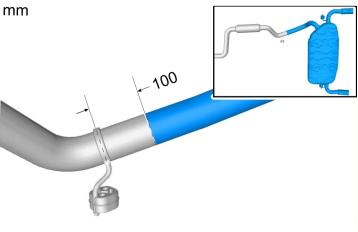

Fig 1: Measuring Location of Cut
GLL155033Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

At the first opportunity, cut the pipe as illustrated.

Tightening torque, M10. see TIGHTENING TORQUE

To install, reverse the removal procedure

NOTE:

Make sure that no exhaust leakage occurs. FLANGED JOINT, ASSEMBLING .
