Exhaust Manifold: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

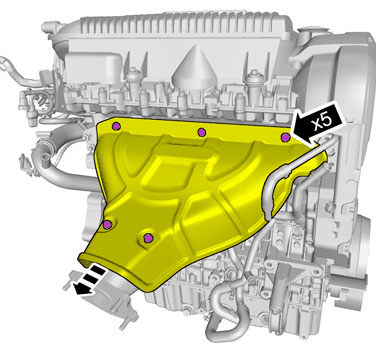

Fig 1: Removing/Installing Heat Deflector Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: M8

24 Nm

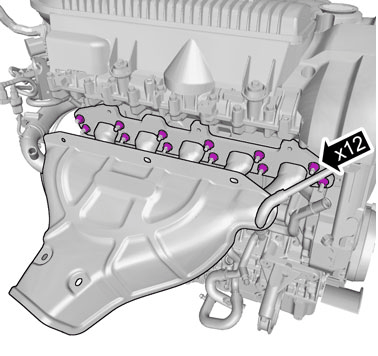

Fig 2: Identifying Exhaust Manifold To Cylinder Head Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: M8

24 Nm

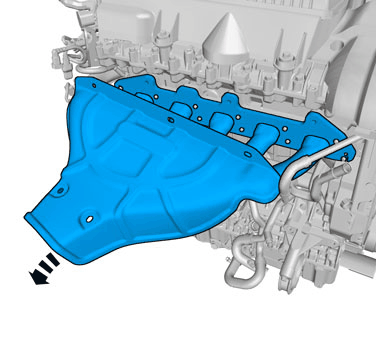

Fig 3: Removing/Installing Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Make sure that the mating faces are clean and free of foreign material.
