Throttle Body: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting see BATTERY DISCONNECTING AND CONNECTING

Remove the air filter housing AIR CLEANER HOUSING

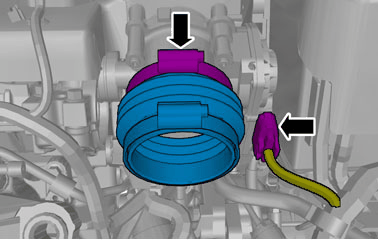

Fig 1: Remove/Install Flex Tube and Connector
GLL178518Courtesy of VOLVO CARS OF NORTH AMERICA.

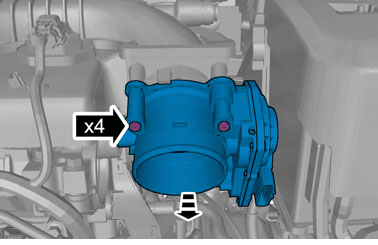

Fig 2: Remove/Install 4 Bolts and Throttle Body
GLL178519Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Throttle body

7 Nm
