Removing The Master Cylinder

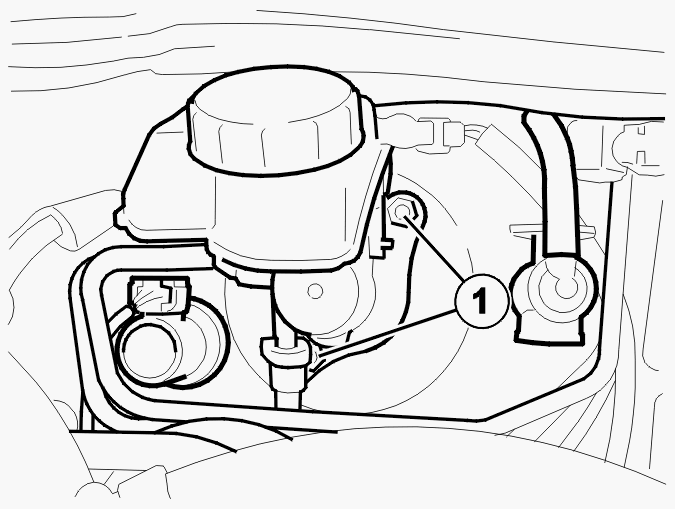

Fig 1: Identifying Master Cylinder, Brake Pipes, And Nuts
G00491493Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 nuts. Pull the master cylinder out from the studs.

Allow the master cylinder to hang from the brake pipes.

NOTE: Do not damage the brake pipes when removing the master cylinder.
