Trim Panel, Doors: Remove

• Turn the ignition key to position 0.

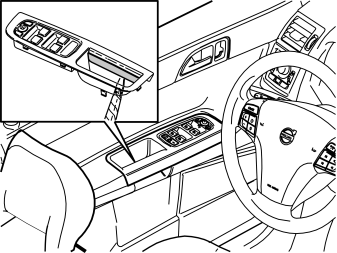

Fig 1: Identifying Door Handle Internal Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the internal panel for the door handle

• Carefully pry off the small internal panel from the door handle. Use a weatherstrip tool positioned opposite the three catches, in the join at the top and bottom.

Removing the door handle panel and door module Illustration A

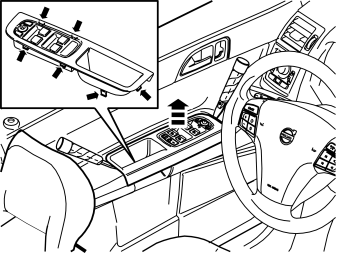

Fig 2: Identifying Door Handle Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Carefully pry all the way around the door handle panel and door module so that the six clips release and the trim panel releases from the door panel.

Illustration B

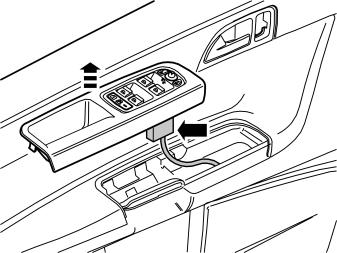

Fig 3: View Of Door Module Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Pull up the panel and door module. Disconnect the connector on the underneath.

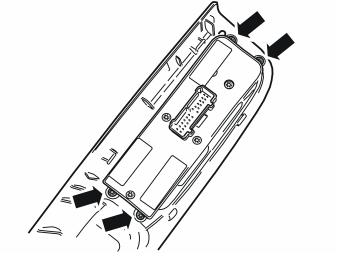

Fig 4: Identifying Door Module Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the door module

• Remove the four screws holding the door module at the panel
• Remove the door module.
