ISOFIX Mounting Child Seat, Rear: Install

NOTE:

The following text describes how to install the ISOFIX mounting on the left-hand side, it can, however, also be installed on the right-hand side of the rear seat in the corresponding way.

Fig 1: View Of Rear Seat Backrest Forward

GLL117714

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the left-hand seat cushion and rear seat backrest forward.

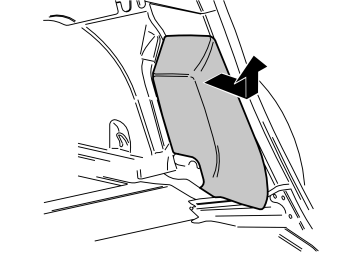

Fig 2: Identifying Left-Hand Side Cushion

GLL117718

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grasp the upper edge of the left-hand side cushion A. Pull the side cushion forward so that the clips on the reverse release.
Remove the side cushion by sliding it upwards.

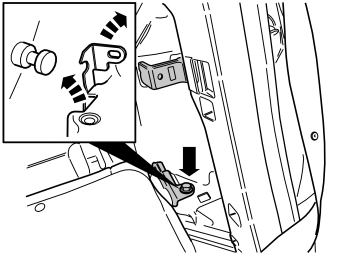

Fig 3: View Of Left-Hand Rear Backrest Bracket Screw

GLL129061

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the left-hand rear backrest mounting in the body. Fold up the bracket over the mounting in the backrest.
Lift up the free end of the backrest and pull it off from the right.
Position the backrest behind the backrest of the front seats.

Fig 4: Identifying ISOFIX Attachment Points

GLL129048

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull off the rear edge of the floor carpet from the floor support. Fold the carpet to one side to expose the attachment points for the ISOFIX mounting in the floor.
Remove the screws from the support bracket, new screws are in the kit.
Remove the cover plug from the floor, it will no longer be used.

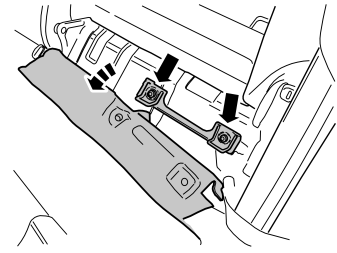

Fig 1: View Of Installed ISOFIX Mounting

GLL129033

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the ISOFIX mounting, from the kit, over the weld nuts. Tighten the mounting using the two screws. Tighten to 40 Nm (30 lbf. ft.) .

Fig 2: View Of ISOFIX Mounting Eyelet Cut-Outs

GLL129034

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the floor carpet back into place and insert the ISOFIX mounting's eyelets in the two cut-outs. Insert the rear edge of the floor carpet under the floor support. If necessary, pry up the floor support to make room.
Reinstall the backrest. Tighten the screws to 40 Nm (30 lbf. ft) .
Reinstall the side bolster.
Fold the seat cushion back into place.
