Child Seat, Mounting Kit (2004-2010): Remove

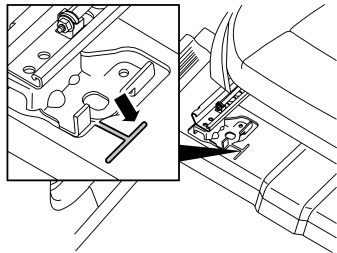

Fig 1: Identifying RH Tunnel Console Floor Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Fold down the floor carpet on the right-hand side of the tunnel console.

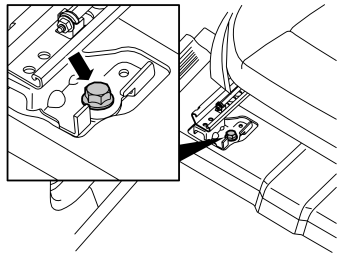

Fig 2: View Of Center Console Mounting Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the rear screw in the center console mounting.

Fig 1: Identifying Cover Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cover panel over the front right-hand mounting by carefully prying it off with a weatherstrip tool.

Fig 2: Identifying Mounting Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the screw in the mounting.

Fig 3: Identifying T-Shape Cut In Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Make a small T-shape cut in the floor carpet, equally as wide as the mounting eyelet on the mounting in the position as illustrated. Use the mounting to mark where the small cut should be located.
