Installing The Traffic Message Channel Module (TMC)

Fig 1: Cleaning Underside Of TMC Receiver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the TMC unit from the kit and clean the marked surface on the underside using isopropanol P/N 1161721. Wipe dry.

Fig 2: Identifying Velcro Fasteners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Velcro Fasteners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Protective Backing Tape From One Side Of Velcro fasteners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective backing tape from one side of the Velcro fasteners which were pressed together.

Fig 5: Identifying Velcro Fasteners On Underside Of TMC unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Pressing Adapter Connector In Rear Edge Of TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the holder to the adapter connector from the kit and press/twist in at the rear edge of the TMC unit.

Fig 7: Pressing Connector Into Rear Edge Of TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the adapter connector from the kit and press in the connector into the rear edge of the TMC unit.

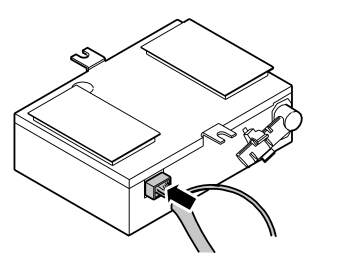

Fig 8: Plugging White Connector Into Rear Edge Of TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the long cable harness from the kit and plug the white connector into the rear edge of the TMC unit.

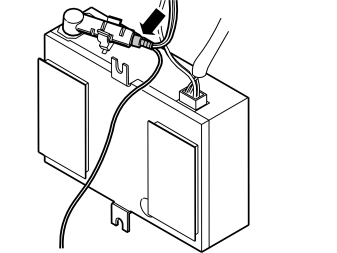

Fig 9: Connecting Routed Cable From Antenna In Windscreen To Adapter In Rear Edge Of TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the routed cable from the antenna in the windscreen to the adapter in the rear edge of the TMC unit.

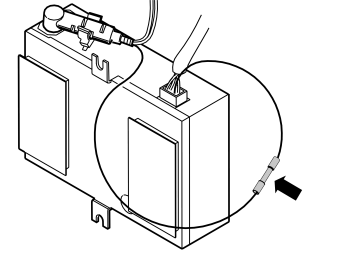

Fig 10: Identifying Red Crimping Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the red crimping sleeve from the kit. Join the single cables from the white connector and the connector to the antenna in the rear edge of the TMC unit.
