Installing The Traffic Message Channel Module (TMC), Continued

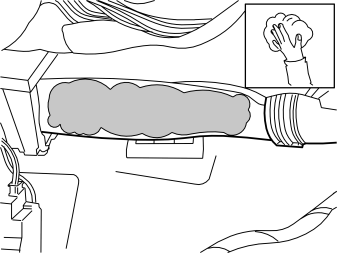

Fig 1: Cleaning Marked Surface On Underside Of Air Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Clean the marked surface on the underside of the air duct using isopropanol P/N 1161721. Wipe dry.

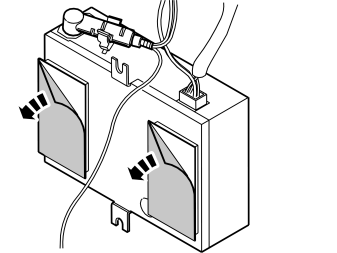

Fig 2: Identifying Protective Backing Tape From Double Velcro Fasteners On TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the protective backing tape from the double Velcro fasteners on the TMC unit.

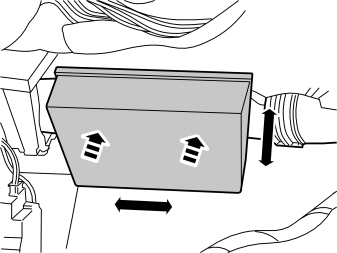

Fig 3: Identifying TMC Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Guide the TMC unit with the connectors pointing forward up toward the underside of the air duct. Position it so that it does not press against surrounding components, and firmly press it in.

Applies to cars with integrated telephone:

• Reinstall the phone module (PHM) on the underside.
• Torque tighten the two screws to 10 Nm (7.5 lbf. ft.)  .
