Connecting The External Amplifier

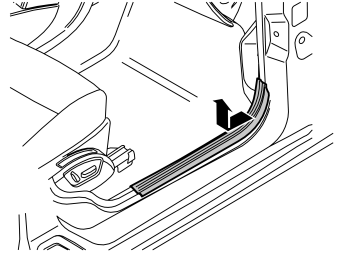

Fig 1: Identifying Sill Trim Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.
• Unhook the sill trim panel from the B-pillar panel.

Fig 2: Identifying Floor Mat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars without a passenger compartment connector socket

• Push the floor carpet to one side in order to route the cable harness toward the rear of the car.

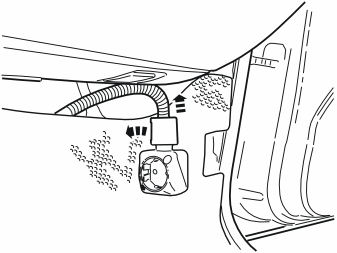

Fig 3: Identifying Passenger Compartment Connector Socket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with a passenger compartment connector socket

• Remove the locking sleeve over the cable splice in the passenger compartment connector socket.
• Disconnect the cable from the passenger compartment connector socket.
• Remove the passenger compartment connector socket from its bracket.
• Push the floor carpet to one side in order to route the cable harness toward the rear of the car.
