Mobile Computing Services (2004-11): Removal: Notes

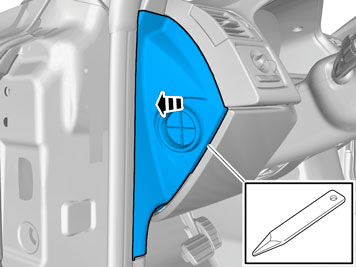

Fig 1: Removing Panel

GLL178890

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel.

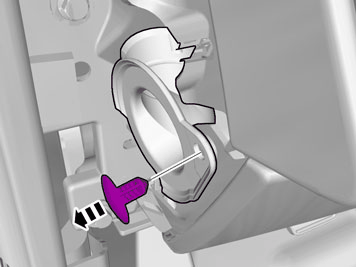

Fig 2: Removing Clip

GLL179952

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the clip.

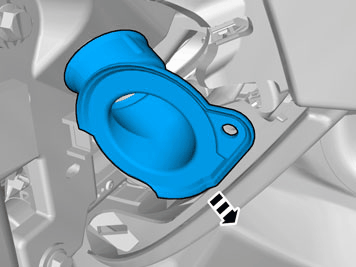

Fig 3: Removing Duct

GLL179954

Courtesy of VOLVO CARS OF NORTH AMERICA.

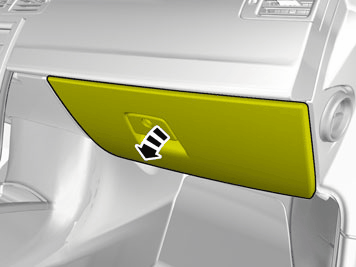

Fig 4: Identifying Glove Compartment

GLL178910

Courtesy of VOLVO CARS OF NORTH AMERICA.

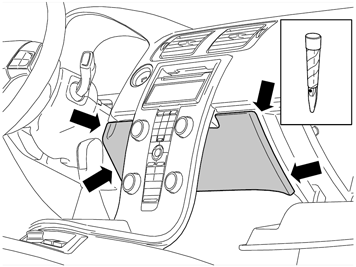

Fig 5: Identifying Panel

GLL178911

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel.

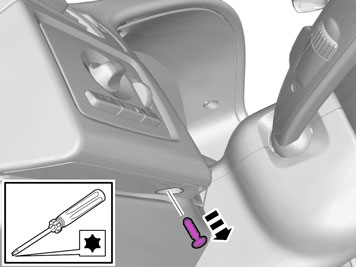

Fig 6: Identifying Screw

GLL179950

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw.

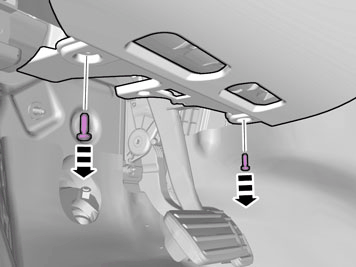

Fig 7: Removing Screws

GLL179951

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws.

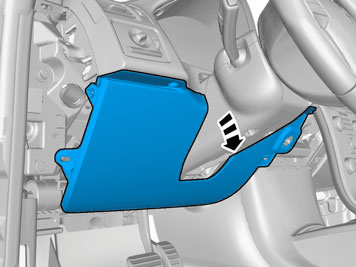

Fig 8: Removing Panel

GLL179971

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel.

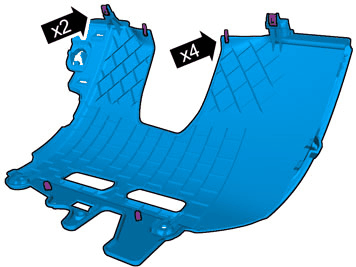

Fig 9: Identifying Floor

GLL179965

Courtesy of VOLVO CARS OF NORTH AMERICA.

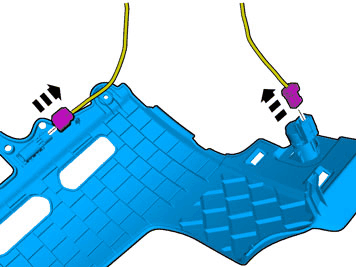

Fig 10: Identifying Connectors

GLL179970

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors.

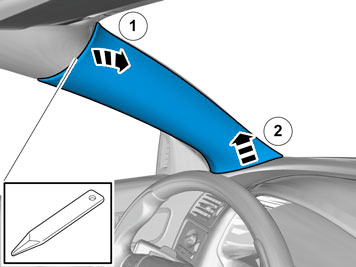

Fig 11: Detaching Panel

GLL178884

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the panel.

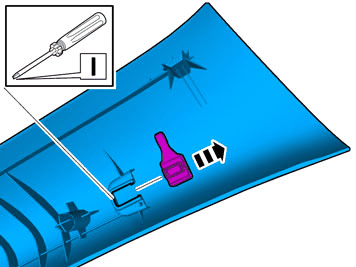

Fig 12: Identifying Clip(s)

GLL179997

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the clip(s).

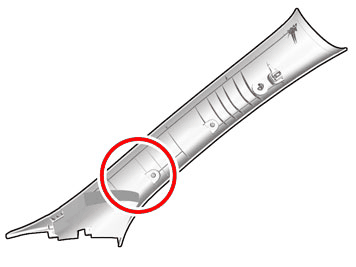

Fig 13: Identifying Trim Panel

GLL179145

Courtesy of VOLVO CARS OF NORTH AMERICA.

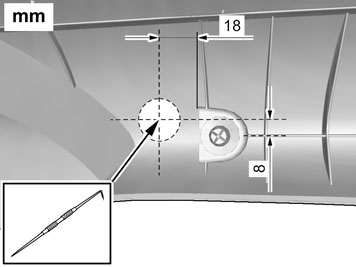

Fig 14: Identifying Mark

GLL179147

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure and mark as shown.

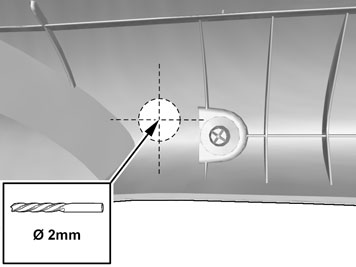

Fig 15: Marking And Drilling Hole

GLL179365

Courtesy of VOLVO CARS OF NORTH AMERICA.

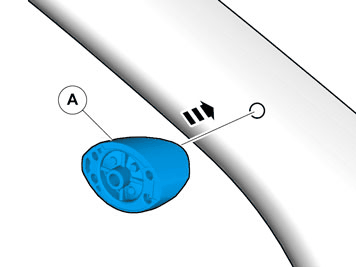

Fig 16: Identifying Clip

GLL177639

Courtesy of VOLVO CARS OF NORTH AMERICA.

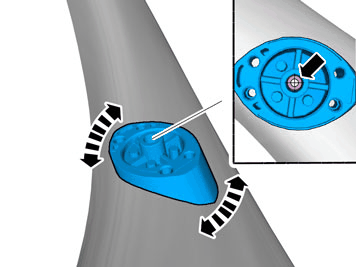

Fig 17: Centering Holes

GLL178781

Courtesy of VOLVO CARS OF NORTH AMERICA.

Center the holes against each other.

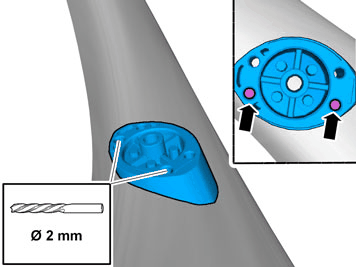

Fig 18: Drilling Holes

GLL177544

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that the part is correctly positioned against the panel's surface.

Drill the holes.

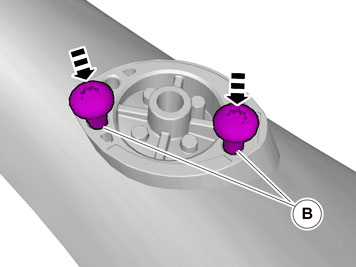

Fig 19: Installing Screws

GLL177329

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws.

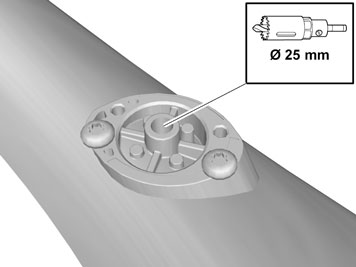

Fig 20: Drilling Hole In Specified Area

GLL178212

Courtesy of VOLVO CARS OF NORTH AMERICA.

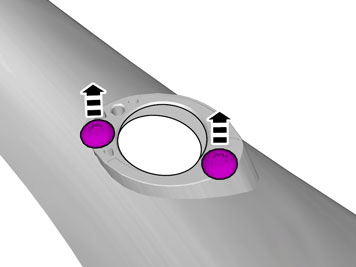

Fig 21: Removing Screws

GLL177324

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws.

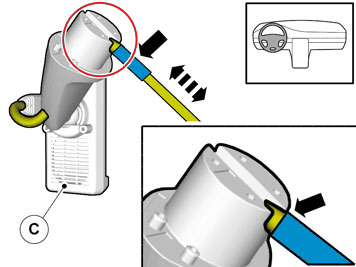

Fig 22: Adjusting Cable Length

GLL177710

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust the cable length so that the marking ends up as displayed in the image.
