Applies To All Models

Fig 1: Identifying Center Console Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws holding the center console's panel to the dashboard.
Loosen the connector to the center console at the rear.
Remove the center console.

Fig 2: Identifying Big Gray Connector At Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the tunnel console and pull it back slightly.
Unplug the big gray connector at the front.

Fig 3: View Of Tunnel Console Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift out the console and turn it upside down.

NOTE:

Protect hand brake and gear lever when removing and installing the tunnel console.

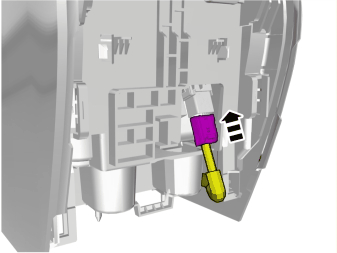

Fig 4: Identifying 12V Socket Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unplug the connector of the 12V socket.

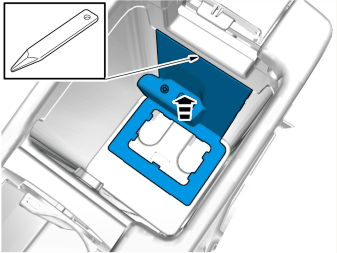

Fig 5: Identifying Tunnel Console Rear Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully bend loose the tunnel console's rear panel using a weatherstrip tool.

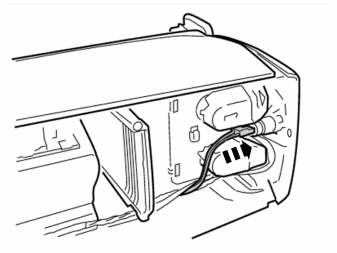

Fig 6: Removing Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Prying Off Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Pulling Panel Upward

Courtesy of VOLVO CARS OF NORTH AMERICA.

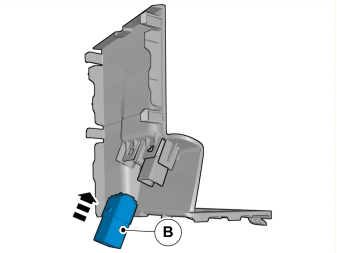

Fig 9: Identifying Socket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Identifying Cable And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

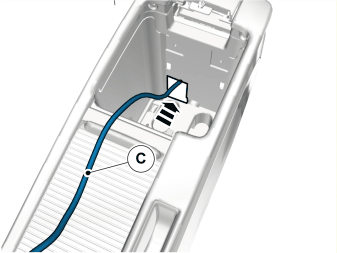

Fig 11: Routing Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 12: Installing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

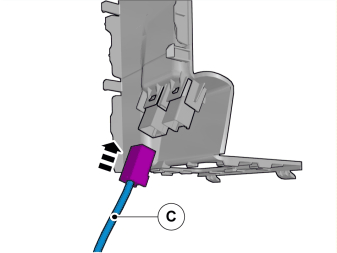

Fig 13: Installing Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

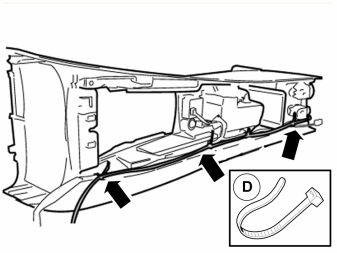

Fig 14: View Of Secured Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clamp in the cable harness to the existing cable harness using cable ties.

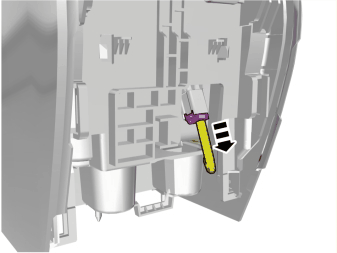

Fig 15: Identifying 12V Socket Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

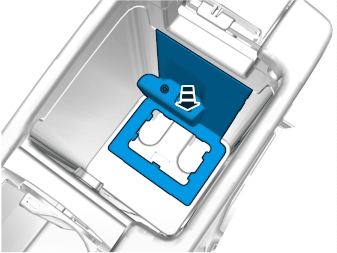

Fig 16: Identifying Storage Compartment Rear Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the panel.

Illustrations A and B

Fig 17: Reinstalling Tunnel Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the tunnel console, but do not slide it forward so far that it covers the rear screw holes for the center console's panel.
Connect the connectors at the leading edge.

NOTE:

Protect the hand brake and gear shift when fitting the tunnel console.

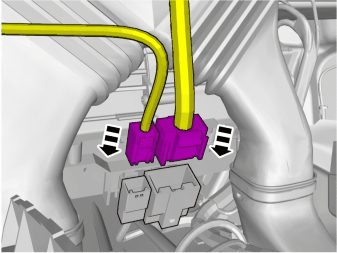

Fig 18: Installing Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 19: Identifying Media Player Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

NOTE:

Be careful with the optic cables so that they are not bent or stretched.

Fig 20: Identifying Media Player Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws from the bottom of the media player.
Pull out the media player and locate the 4-pin foam coated connector.

NOTE:

Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").

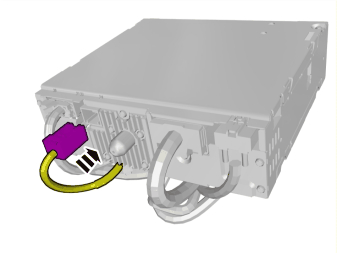

Fig 21: Identifying Media Player Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the foam tape and connect the connector to the media player.

Illustrations A and B

Fig 22: Identifying Media Player Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the media player in the dashboard.
Guide in the lug (1) at the rear of the media player with one hand. The lug must be in the corresponding hole.
Tighten the media player using the two screws.

NOTE:

Make sure that the fibre optic cable is routed so that it is bent to a radius of no less than 25 mm (1").

Fig 23: Identifying Media Player Lug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 24: Identifying Center Console Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the center console, connect the green connector and fit the screws, two at the top and two on the rear edge.

Applies to cars with manual gearbox

Install the gear selector boot in the center console starting at the rear edge.

Fig 25: Sliding Tunnel Console Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the tunnel console forward so that the locking lug secures it. At the same time, guide in the floor carpet on the right and left-hand side.

Reinstall:

the two screws at the front edge of the tunnel console.
the panel at the parking brake.

Fig 26: Locating Rear Tunnel Compartment Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the screws and cover.
Reinstall the detached components in reverse order.

Fig 27: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS OF NORTH AMERICA.

Download the software for the accessory's function following the service information in VIDA (Volvo scan tool).
