Applies To Cars With Manual Gearbox

Fig 1: Identifying Gear Selector Lever Boot

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.

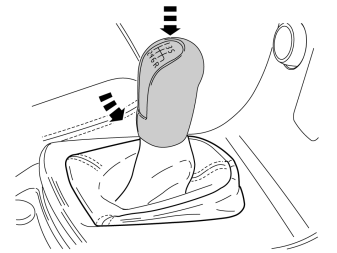

Fig 2: Identifying Gearshift Knob

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the gearshift knob from the shift by pressing down the knob and turning it slight more than a 1/4 turn counter-clockwise and pull it up.

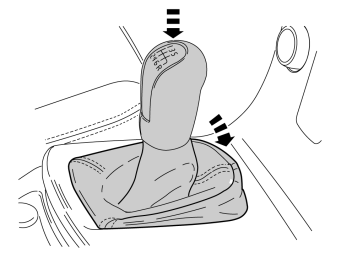

Fig 1: Identifying Shift Knob And Shift Boot

Courtesy of VOLVO CARS OF NORTH AMERICA.

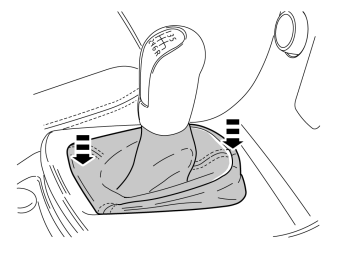

Fig 2: View Of Shift Boot Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.
