Remove
Tunnel Compartment, Switch (2008-2011): Remove
Remove floor console. See:
FLOOR CONSOLE (2008-2011)

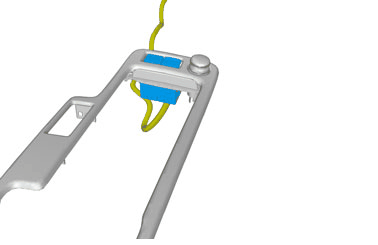

Fig 1: Identifying Tunnel Compartment Switches
Courtesy of VOLVO CARS OF NORTH AMERICA.

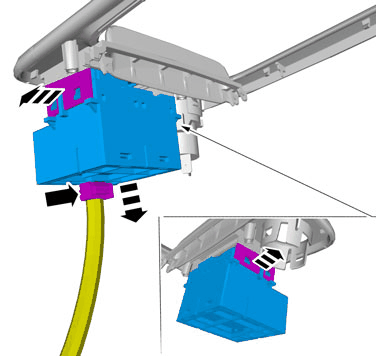

Fig 2: View Of Tunnel Compartment Switch Tabs
Courtesy of VOLVO CARS OF NORTH AMERICA.

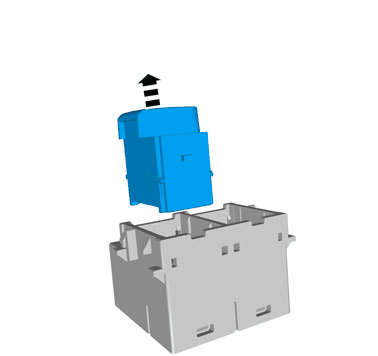

Fig 3: Removing Tunnel Compartment Switches
Courtesy of VOLVO CARS OF NORTH AMERICA.
