Removing The Back-Up Lamp Switch, Gearbox M56

Ignition off

Remove the air cleaner (ACL) housing.

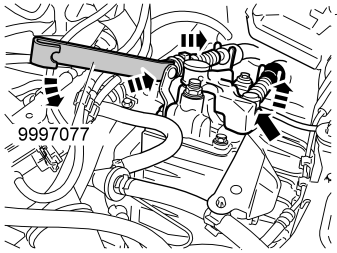

Fig 1: Identifying Tool P/N 9997077

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following items:

• the gear selector cables from the levers. see 9997077
• the gear selector cables from the brackets to prevent bending them when removing the lever.

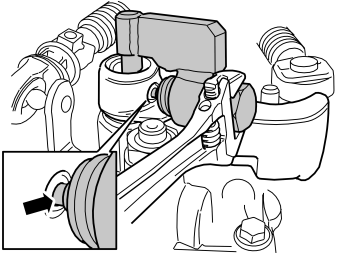

Fig 2: Identifying Tool P/N 9997221

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following items:

• pin. see 9997221 .
• the lever

Fig 3: Identifying Back-Up Lamp Switch Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following items:

• the connector from the back-up lamp switch.
• the back-up light switch. see 9995543
