Fit the starter motor

WARNING: This page is about a different variant/trim than selected.

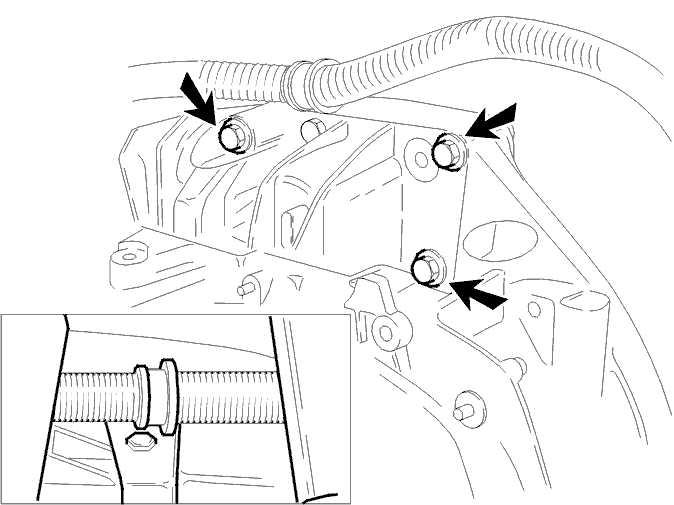

Fig 1: Identifying Starter Motor Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the starter motor and thread the three bolts.

Tighten the bolts to 50 Nm .
