Fit the left-hand engine cover

WARNING: This page is about a different variant/trim than selected.

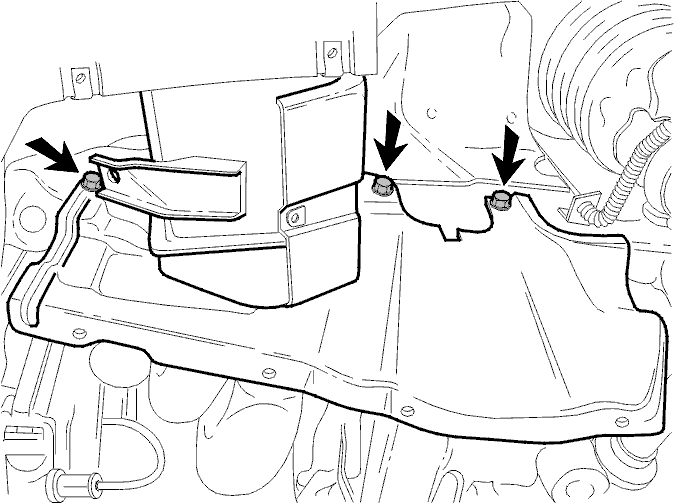

Fig 1: Identifying Left-Hand Engine Cover Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the engine cover.

Fit the three bolts in order, see illustration.

Tighten the bolts to 17 Nm .
