Fit the heat shield

WARNING: This page is about a different variant/trim than selected.

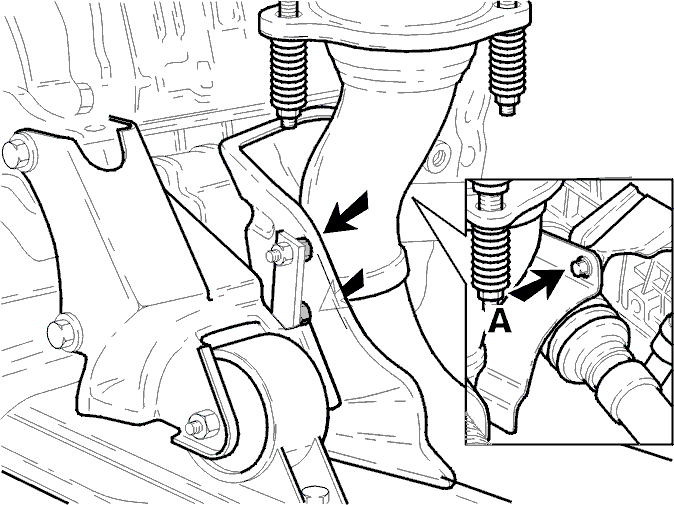

Fig 1: Identifying Heat Shield Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the heat shield and thread the first bolt (A).

Fit the two other bolts.

Tighten the bolts to 10 Nm .
