Removing The Seat Belt Lap TENSIONER
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2011 Volvo V50, 2010 Volvo V50, 2009 Volvo V50, 2008 Volvo V50, and 2007 Volvo V50. However, it is still accessible from the selected car via links, so may be relevant.

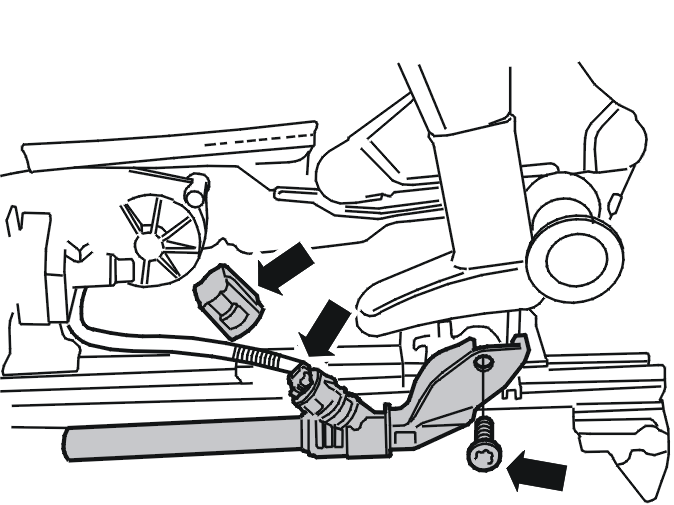

Remove:
- the side panel as described in, see SIDE PANEL FRONT SEAT (2005-2008)
- the end mounting. See: QUICK-RELEASE CONNECTOR BELT (2005, 2006)
- the cover over the connector
- the connector, x 1
- the bolt, x1
- the safety belt tensioner.
