Checking Component And Wiring

Check the voltage on the courtesy lighting connector terminal #12 to the output on the central electronic module (CEM). The voltage must be approximately 0 V when the courtesy lighting is activated.

Check control signal cable for a short-circuit to supply voltage.

Take readings between:

• Central electronic module (CEM) terminal #D3 (#3) and roof lamp connector terminal #12.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2004, 2005, 2006, 2007)
• see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM) (2004, 2005, 2006, 2007)
• see CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT
• see LIGHTING, INTERNAL FRONT (2007, 2008, 2009, 2010, 2011)
• see CHECKING WIRING AND TERMINALS

Fig 1: Identifying M2D Control Module (FORTV Executive. Rear Seat Entertainment, Generation 3.1/3.2, Premier TV Receiver) Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

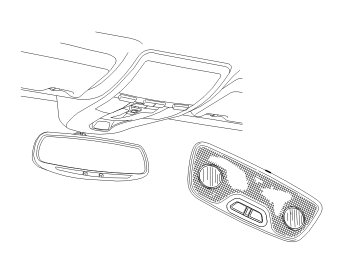

Fig 3: Identifying Passenger Compartment Light

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to VERIFICATION
