Checking Component And Wiring

Check that relay 2/82 is correctly installed.

Also check the relay terminal, in particular 2/82 terminal #2. Check for an open-circuit. Check for a short-circuit to ground.

It is not possible to deactivate the tailgate wiper if there is a short-circuit to ground in terminal 2/82#2.

HINT: The fault may have been caused by an open-circuit in the supply to the relay. The voltage must be 12 V at both terminals #1 and #3 for the relay. Also check the fuse for the rear windshield defroster.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2004, 2005, 2006, 2007)
• see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM) (2004, 2005, 2006, 2007)
• To replace the relay, see:CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT
• see CHECKING WIRING AND TERMINALS

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

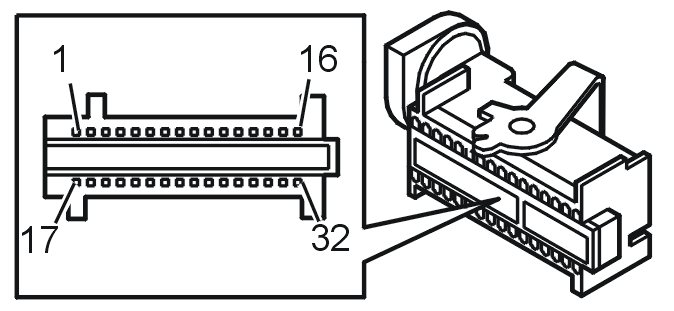

Fig 3: Identifying 32-Bit Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to VERIFICATION
