Connector Anti-Lock Braking System Module (Abs): Disassembly

DISASSEMBLING SECONDARY LOCK

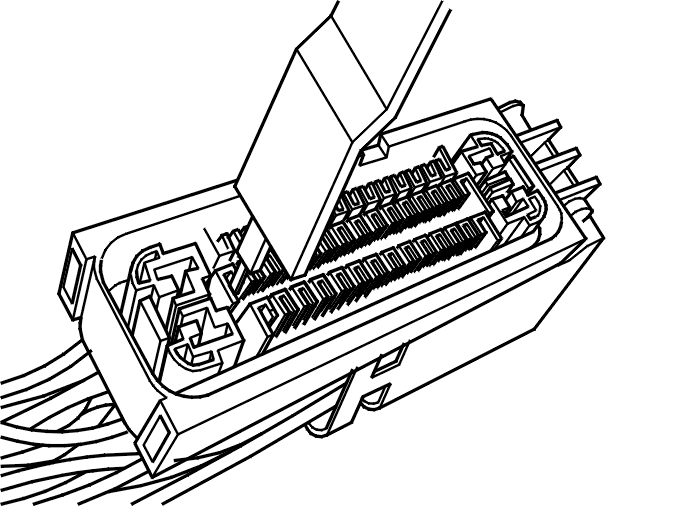

Fig 1: Identifying Secondary Lock Released Using Electrician's Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the secondary lock. Use an electrician's screwdriver, as illustrated.

DISASSEMBLING PRIMARY LOCK

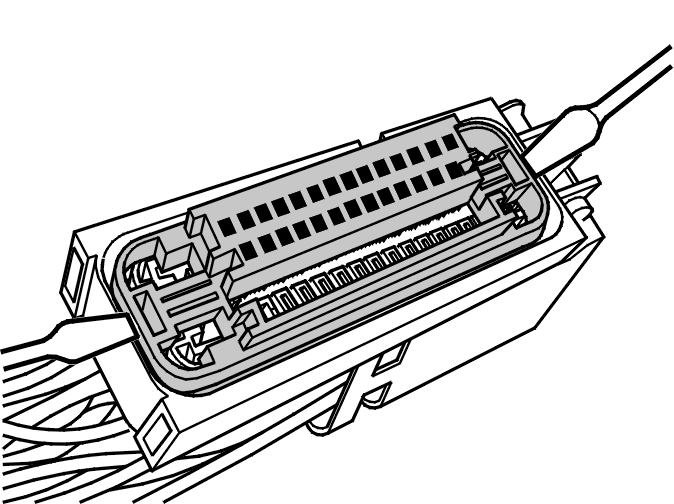

Fig 2: Identifying Tools 951 2636 Or 951 2639 To Remove Primary Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use tool: 9512630 and tool: 9512631 to remove the primary lock. See the graphics.

At the same time pull the cable carefully backwards.
