Rear Brake Caliper: Removal

Remove the wheel, see: WHEELS

Fig 1: Bleeding Brake Fluid

Courtesy of VOLVO CARS OF NORTH AMERICA.

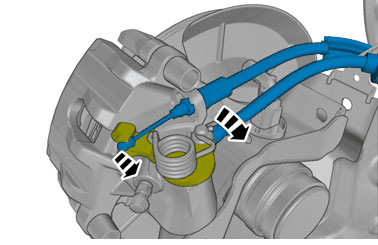

Fig 2: IdentifyingRear Brake Flexible Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Rear Brake Flexible Hose

23 Nm

D

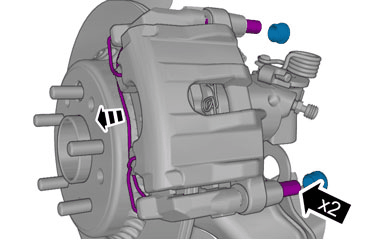

Fig 3: Identifying Caliper Slide Pins and Anti Rattle Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Slide rail rear brake caliper

35 Nm

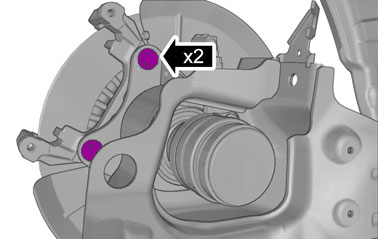

Fig 4: Identifying Rear Brake Caliper Bracket Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Rear brake caliper in longitudinal stay

70 Nm
