Rear Brake Disc (2004, 2005, 2006, 2007, 2008, 2009, 2010): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wheel see WHEELS

Remove brake pads rear. See BRAKE PADS REAR

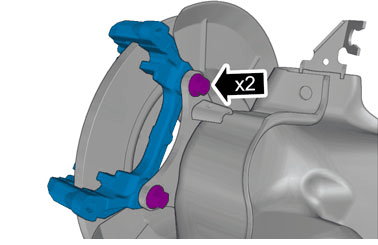

Fig 1: Identifying Caliper Bracket Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: Rear brake caliper in longitudinal stay

70 Nm

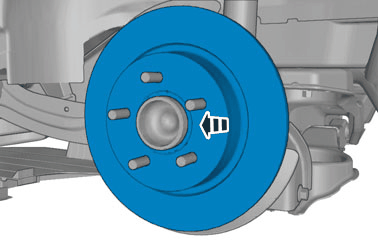

Fig 2: Installing Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.
