Removing The Brake Disc

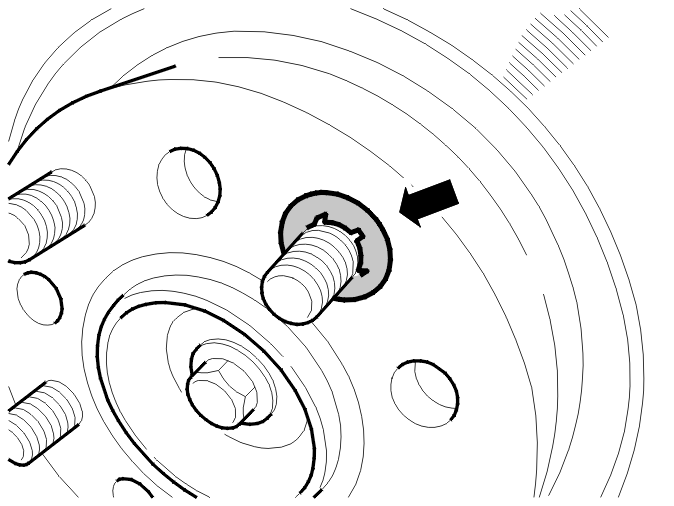

Fig 1: Identifying Brake Disc Retainer

GLL128718

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the retaining clip
the brake disc.
