Wheel Brake - Removal, Replacement And Installation (544 Body)
>>
Front Wheel Brake (B5254T3, Aw50/51 AWD; B5254T3, M66 AWD; 2005-2007)
>>
Front Brake Disc
>>
Preparatory Work
Preparatory Work

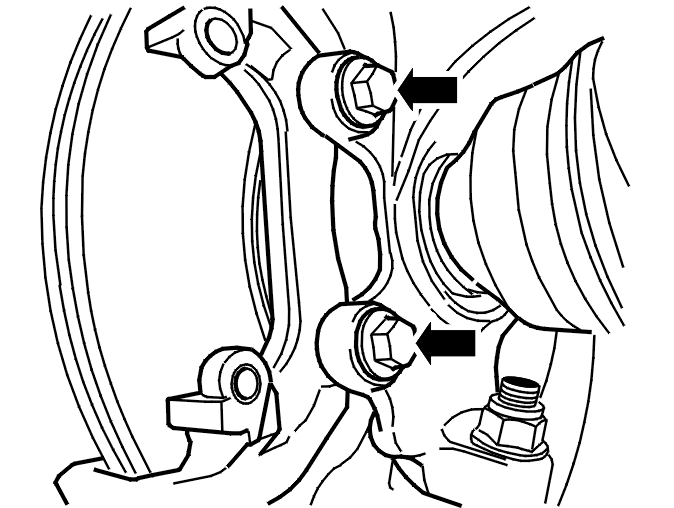

Fig 1: Identifying Brake Caliper Mounting Bracket Bolts
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the wheel
the brake pads. See:
BRAKE PADS, FRONT
the 2 screws
the mounting bracket.
