Front Brake Disc: Removal

Remove the wheel. See: WHEELS

Remove brake pads front. See BRAKE PADS, FRONT

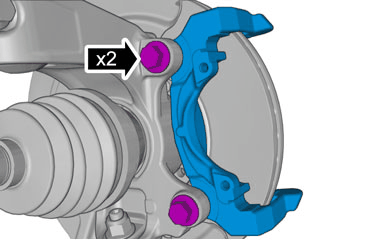

Fig 1: Identifying Caliper Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Brake caliper in steering arm, front

120 Nm

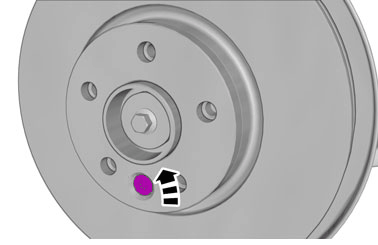

Fig 2: Removing/Installing Brake Disc Retaining Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  M6

10 Nm

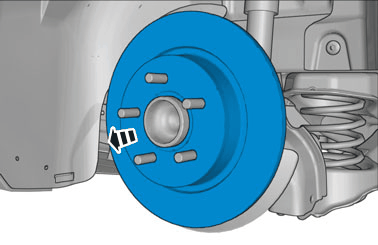

Fig 3: Removing Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.
