Driver Door Module (DDM): Remove

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position
GLL166009Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove panel side door front, see PANEL FRONT DOOR (2004-2007) , and PANEL FRONT DOOR (2008-2011)

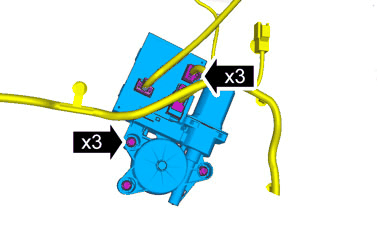

Fig 2: Identifying Driver Door Module (DDM) Screws
GLL172891Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  M6

10 Nm
