Anti-Theft Protection Siren (2004-2010): Remove

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position
GLL166009Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the plenum cover, see PLENUM CHAMBER

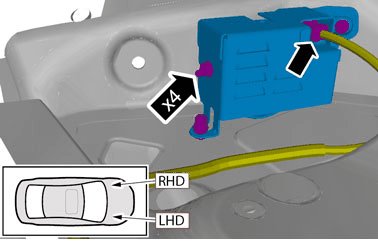

Fig 2: Identifying Anti-Theft Protection Siren Bolts
GLL179391Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  M6

10 Nm
