Installing The GPS Antenna

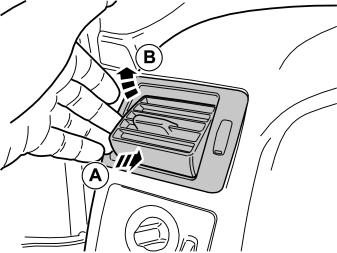

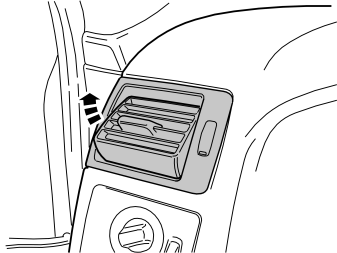

Fig 1: Identifying Left-Hand Air Vent

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Gripping Air Vent

Courtesy of VOLVO CARS OF NORTH AMERICA.

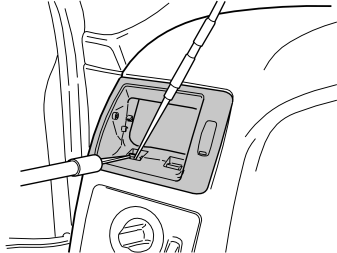

Fig 3: Identifying Scriber And Tool P/N 9995919

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
Insert the tool P/N 9995919 in the space which is opened and pull out until the catch releases.
Repeat this on the other catch in the lower edge.

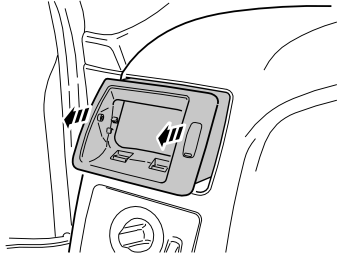

Fig 4: Identifying Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.
NOTE: Do not damage the dashboard.

NOTE: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

Fig 5: Cutting Adhesive Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the larger of the pieces of double-sided adhesive tape from the kit and cut it into two equal pieces.

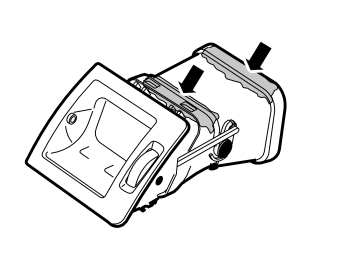

Fig 6: Cleaning Marked Surfaces On Front Part Of Air Vent

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the two marked surfaces on the front part of the air vent using isopropanol P/N 1161721. Wipe dry.

Fig 7: Cleaning Marked Surfaces On Underside Of GPS Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the GPS antenna from the kit and clean the two marked surfaces on the underside using isopropanol P/N 1161721. Wipe dry.

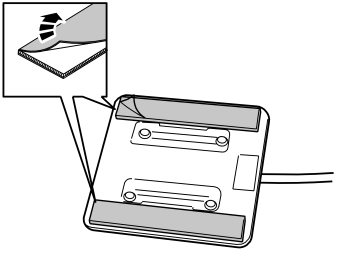

Fig 8: Identifying Protective Backing Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Identifying Pieces Of Tape On Underside Of GPS Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Identifying Protective Backing Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

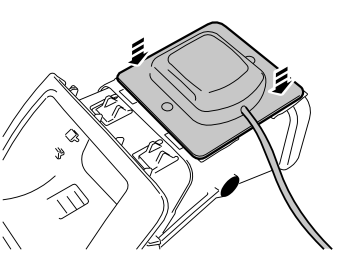

Fig 11: Identifying GPS Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

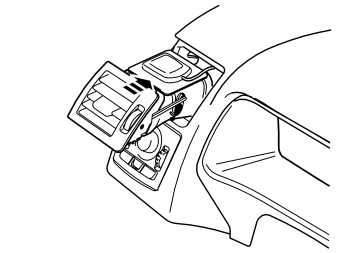

Fig 12: Identifying Air Vent In Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the air vent with the cable in place in the dashboard and press in. The top of the GPS antenna may offer a little resistance in the top edge of the cut-out.

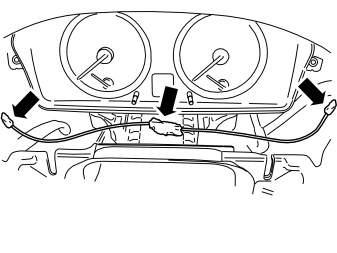

Fig 13: Routing Cable From GPS Antenna To Right In Front Of Driver Information Module (DIM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the cable from the GPS antenna to the right in front of the driver information module (DIM), past the compartment for the media player, down to the hole (1) shown, where the detachable air duct was located. Continue to route the cable forward inside the cover, and then out where the cable to the screen was routed.
Secure the cable at the driver information module (DIM) using pieces of butyl tape.
Reinstall the combined instrument panel surround.

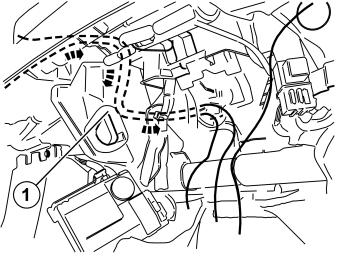

Fig 14: Identifying Hole Where Cable Is Routed Where Detachable Air Duct Is Located

Courtesy of VOLVO CARS OF NORTH AMERICA.
