Roof-Mounted GSM Antenna

Fig 1: Identifying Ignition Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position 0.

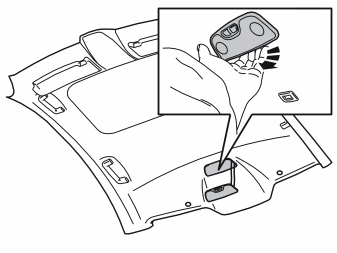

Fig 2: Removing Rear Interior Lighting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear interior lighting. Start by removing the rear edge and allow to hang.

Fig 3: Applying Tape Around Antenna Dummy

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the roof around the existing antenna dummy, above the rear windscreen
Apply tape around the antenna dummy to prevent paintwork damage when the antenna dummy is cut off.

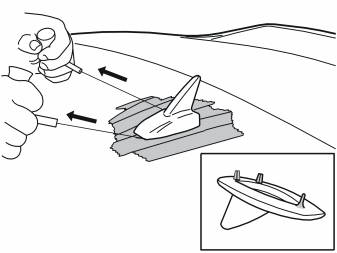

Fig 4: Removing Antenna Dummy

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the antenna dummy. Cut around the antenna dummy. Use handles P/N 9512333 with a thin piano wire.
NOTE:
There are three locating pins in the antenna dummy so pull the wire from both ends. Pull evenly to prevent paintwork damage.
Remove the tape.

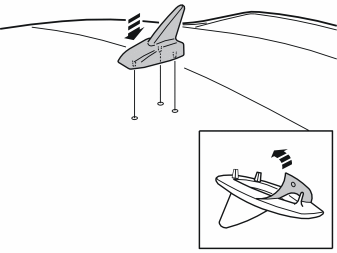

Fig 5: Removing Protective Film From Tape And Aligning Locating Pins For Antenna With Corresponding Holes In Roof

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

To ensure the best results, it is recommended that two people press the new antenna onto the roof. One person should push against the inside of the roof to prevent buckling when the antenna is pressed down.

Clean the area on the roof where the new antenna is to be positioned. Use a mixture of 30% isopropanol and 70% water. Wipe dry
Remove the protective film from the tape on the antenna
Align the locating pins for the antenna in the corresponding holes in the roof. Press the antenna securely into place.
NOTE:
Apply pressure to the antenna for at least 30 seconds so that the tape secures properly.

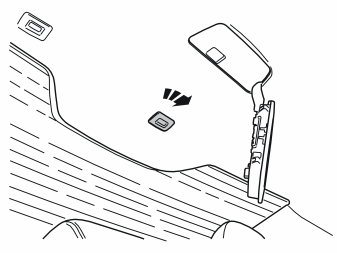

Fig 6: Turning Clip 90° To Remove It From Headlining And Locating Pre-Routed Cable For Antenna Behind Hole For Interior Lighting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the clip 90°. Remove the clip from the headlining
Carefully fold down the center section of the rear end of the headlining. Find the pre-routed cable for the antenna behind the hole for the interior lighting.

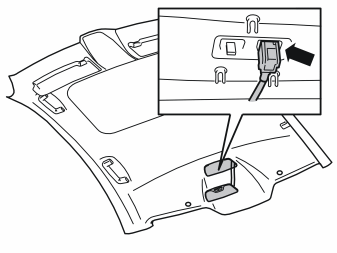

Fig 7: Connecting Violet Connector On Pre-Routed Antenna Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the violet connector on the pre-routed antenna cable to the left outlet on the antenna. The antenna cable is taped to the headlining behind the hole for the interior lighting
Reinstall the clip in the headlining
Reinstall the interior lighting.

CAUTION:

Leave the car indoors for two hours after installing the antenna. Do not wash the car for at least 48 hours after installation.
