Location Of Components

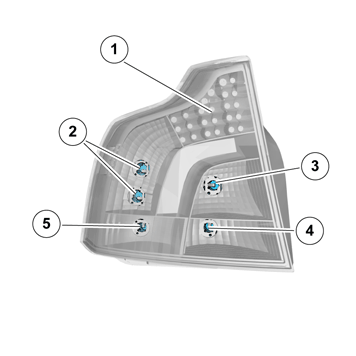

Fig 1: Locating Tail Lamp Components
GLL160115Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. brake light
  2. tail lights
  3. direction indicator
  4. back-up light
  5. fog lights
