Replacing the fan blade

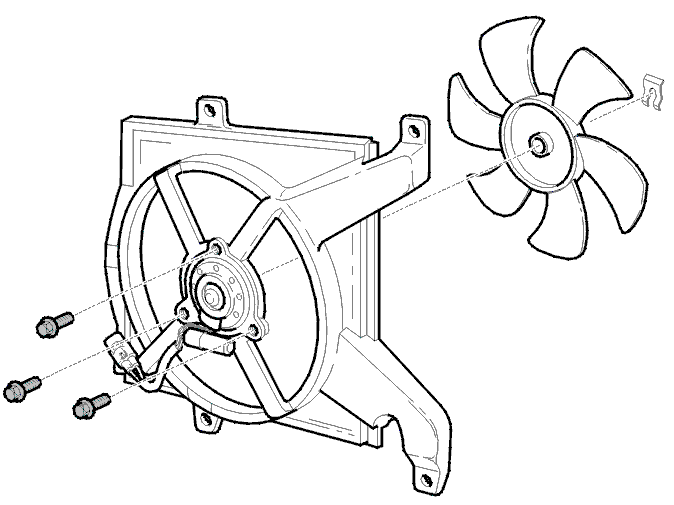

Fig 1: Replacing Fan Blade

GLL115087

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the clip. Pull off the fan blade.

Install a new blade and clip.
