Replacement of vacuum pump and regulator

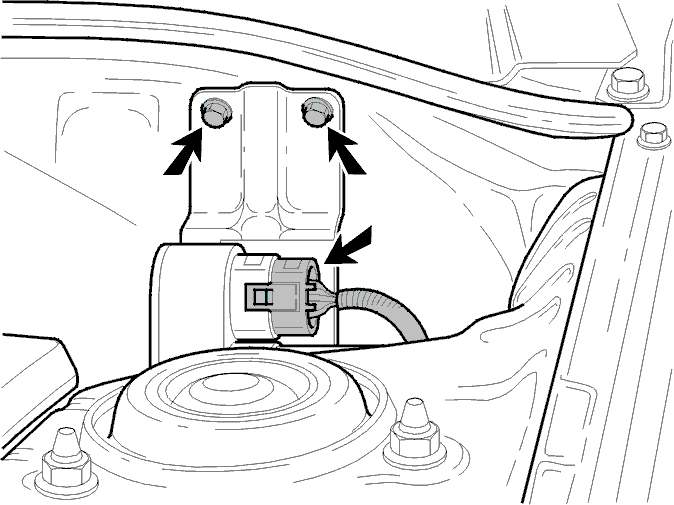

- Remove connector from vacuum pump.
- Remove two mounting bolts and remove vacuum pump and regulator.
- Remove vacuum hose.
- Pull the three rubber boots from support and remove vacuum pump and regulator.
Reinstall in reverse order.
