Cleaning the Mounting Surfaces Of the Wheel

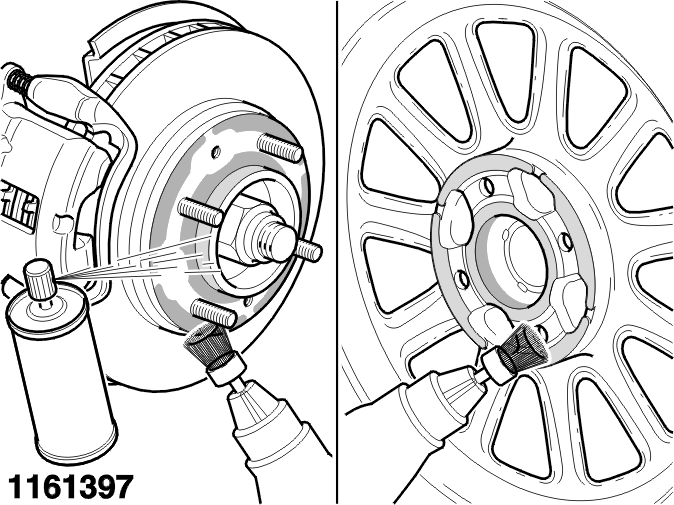

Fig 1: Cleaning Mounting Surfaces Of Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Brush clean the mounting surfaces marked gray on the brake disc as shown and on the inside of the wheel
• Clean the sections
• Only apply installation paste P/N 1161397 to the marked gray sections of the brake disc and hub as shown.
• Install the wheel. See Installing Wheels .
