Installing the Trailing Arm

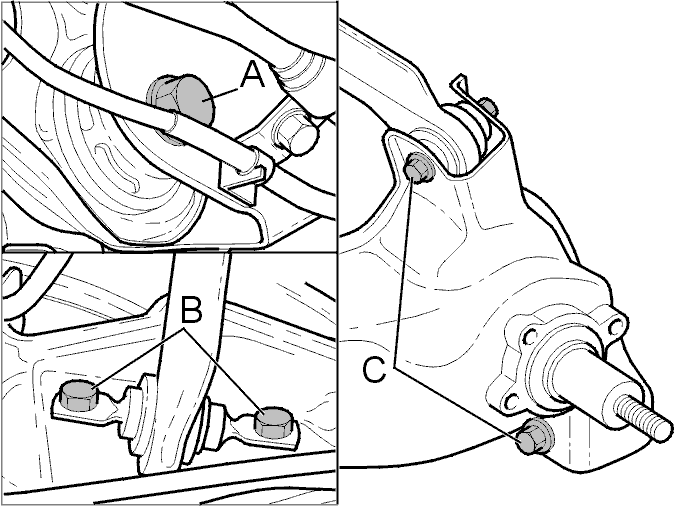

Fig 1: Trailing Arm Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the trailing arm in the front mounting using screw A
• the control arm for toe-in adjustment in the trailing arm using the 2 screws B
• the upper and lower control arms on the trailing arm using the 2 screws C.

Tighten all the screws and nuts to contact
