Installing Components On the Trailing Arm

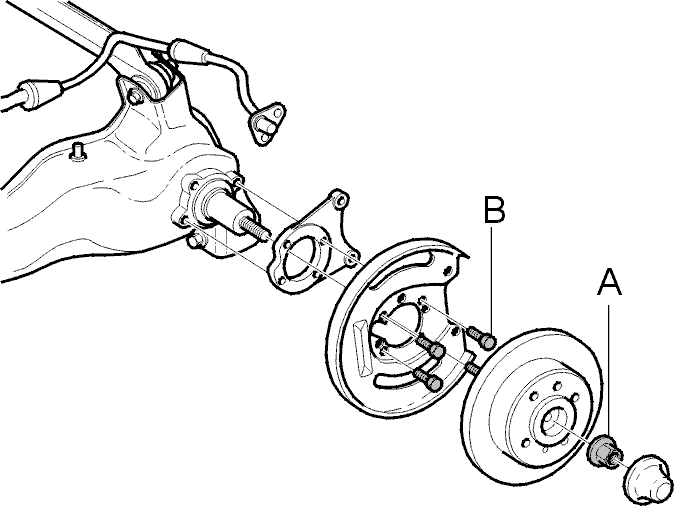

Fig 1: Wheel Hub

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Check that the wheel bearing has not separated and that the circlip holding the inner bearing ring is in position. The hub must be replaced if the bearing is faulty.

Install:

the ABS line on the trailing arm
the support, ABS sensor and protection plate
the 4 screws B. Tighten to 55 Nm
the whole hub and the brake disc
the center nut A. Tighten to 120 Nm and 30°
the hub cap.
