Removing the Front Rubber Bushing From the Trailing Arm

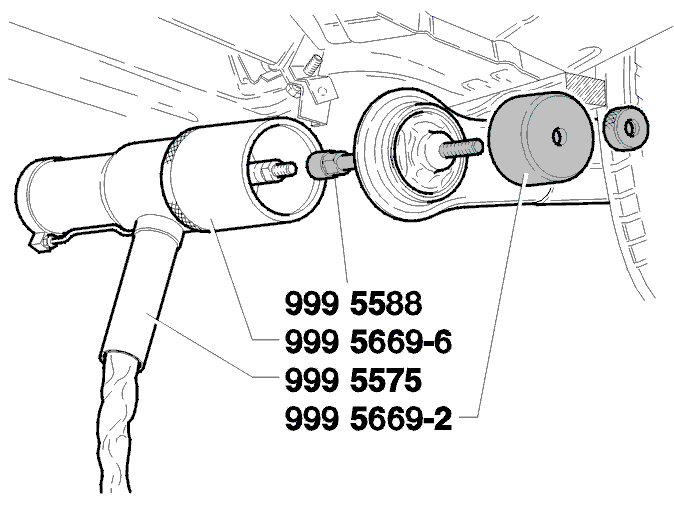

Fig 1: Removing Front Rubber Bushing From Trailing Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the front rubber bushing from the trailing arm. Use special tool 9995575 .

Install bushing 9995669 and shaft 9995588 on special tool 9995575 .

Install the shaft in the rubber bushing.

Install bushing 9995669 . Secure the bushing using the nut.

Press the rubber out of the trailing arm. Remove the rubber from the special tool.
