Installing the Front Trailing Arm

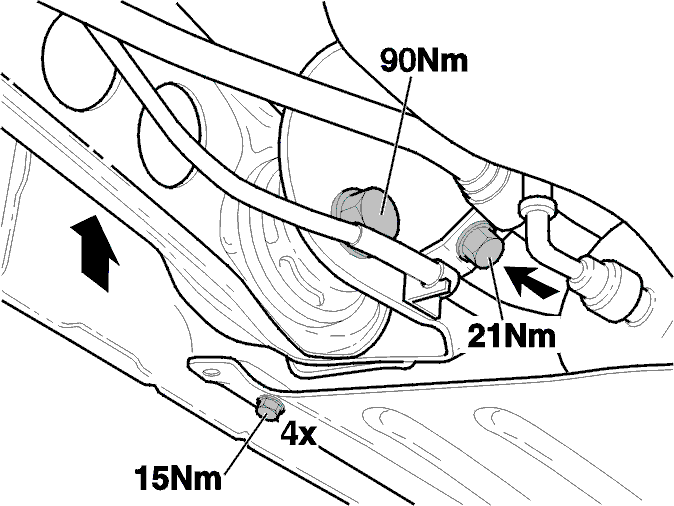

Fig 1: Installing Front Trailing Arm With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the trailing arm. Install the screw.

Remove the support.

Install the tie rod for the toe-in for the trailing arm. Tighten to 35 Nm

Bounce the car a few times.

Install the screw. Tighten the screw. Tighten to 90 Nm  .

Install the bracket for the parking brake cable. Tighten to 21 Nm  .

Secure the cable harness for the ABS system in the mounting.

Install the protective cover for the fuel filter. Tighten to 15 Nm  .
