Tighten the Trailing Arm

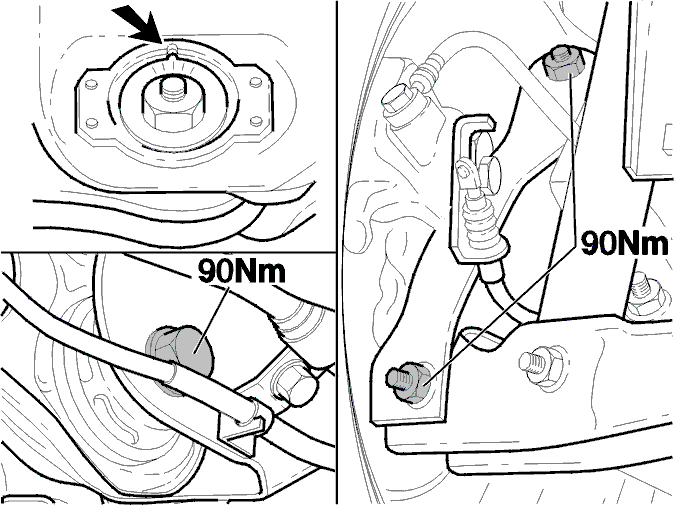

Fig 1: Identifying Lower Control Arm, Upper Control Arm & Bodywork Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the support and bounce the car a few times.

Turn the adjustment screw to the previous position.

Tighten:

• the screw on the lower control arm. Tighten to 90 Nm  .
• the screw on the upper control arm. Tighten to 90 Nm  .
• the screw on the bodywork. Tighten to 90 Nm  .
