Remove the Parking Brake Cable From the Brake Caliper

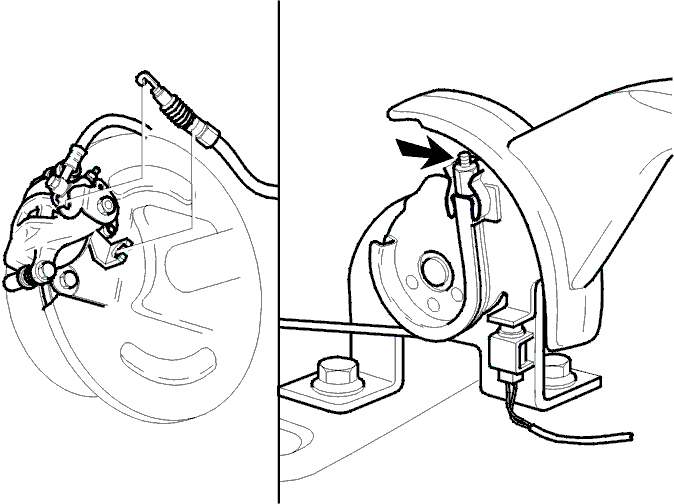

Fig 1: Identifying Parking Brake Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear center console. See Removing the Rear Center Console .

Align the parking brake.

Remove the retaining clip.

Remove the parking brake cable from the brake caliper support. Unhook the inner cable from the brake lever.

Remove the parking brake cable from the trailing arm.
