Remove Components From the Trailing Arm

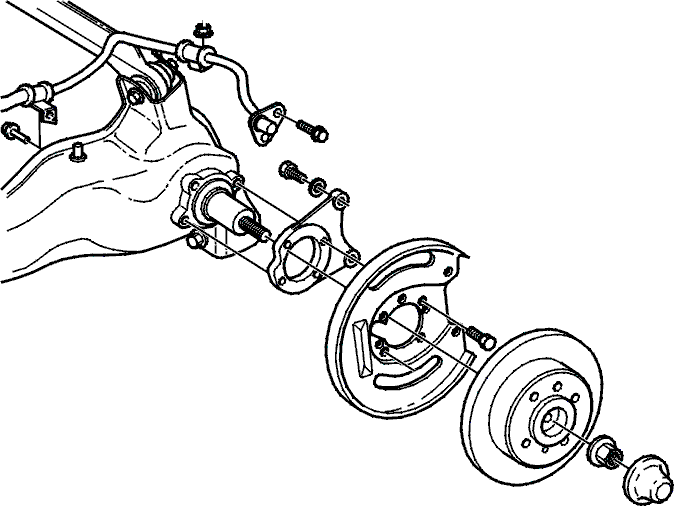

Fig 1: Identifying Hub Cap, Center Nut, Whole Hub, Brake Disc, Splashguard And Support From Hub With Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the hub cap, the center nut
• the whole hub and the brake disc
• the 4 screws. Remove the splashguard and the support from the hub
• The ABS sensor. See Removing front wheel sensor and Removing the rear wheel sensor
• the ABS line from the trailing arm.
