Install the Trailing Arm

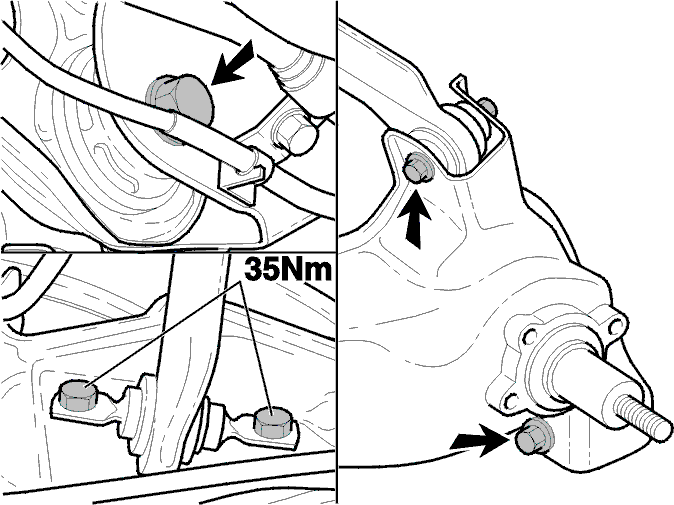

Fig 1: Identifying Bolts In Trailing Arm, Front Mounting Point And Lower Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bolts in the trailing arm, in the front mounting point and in the lower arm. Finger tighten.

Install the control arm for toe-in adjustment on the trailing arm. Tighten to 35 Nm  .
