Install the Components On the Trailing Arm

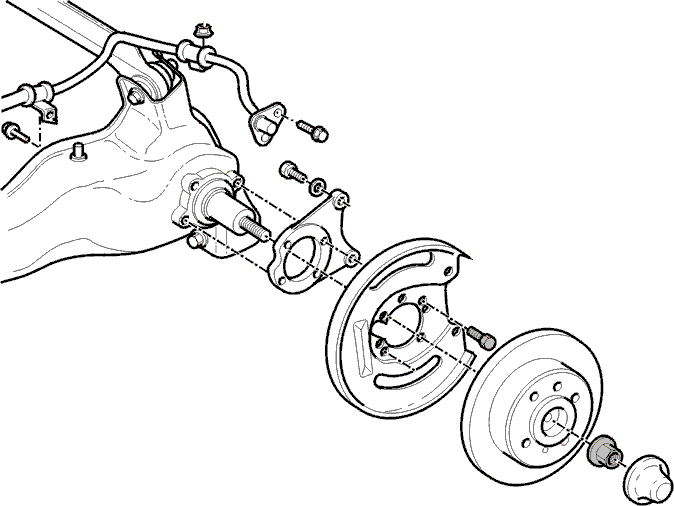

Fig 1: Identifying Hub Cap, Center Nut, Whole Hub, Brake Disc, Splashguard And Support From Hub With Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For information about installing the ABS sensor, see Installing Front Wheel Sensor and Installing Rear Wheel Sensor .

Clean the surrounding area.

Install:

the ABS sensor
the support and the splashguard on the hub. Tighten to 55 Nm
the ABS line on the trailing arm
the complete hub with the brake disc. Install a new center nut. Tighten to -97 175 Nm , 98- 120 Nm Angle-tighten 30° .
