Tighten the Upper Control Arm

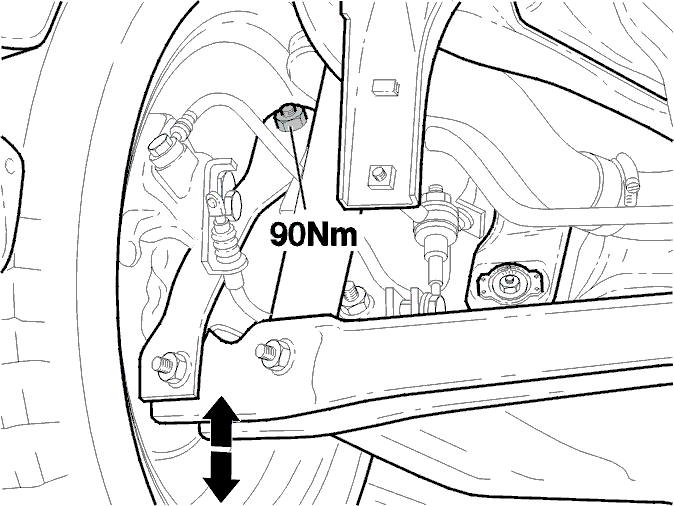

Fig 1: Identifying Trailing Arm Screw
GLL116478Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the support and bounce the suspension a few times.

Tighten the screw for the trailing arm. Tighten to 90 Nm  .
