Installing the air cleaner (ACL) housing

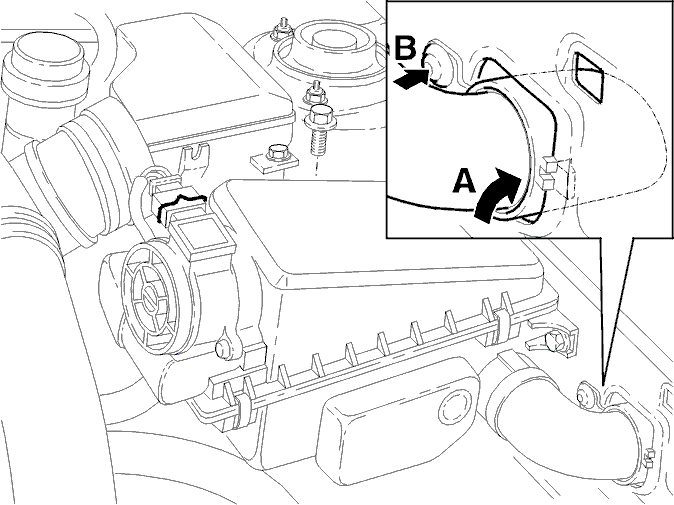

Fig 1: Installing Air Cleaner (ACL) Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the air cleaner (ACL) housing.

Install:

• the screws for the air cleaner (ACL) housing
• the screws for the relay box
• the preheating hose
• the inlet hose
• the assisted air control valve.

Reconnect the vacuum hoses, connectors and wiring.
