Turbocharger (TC), removing

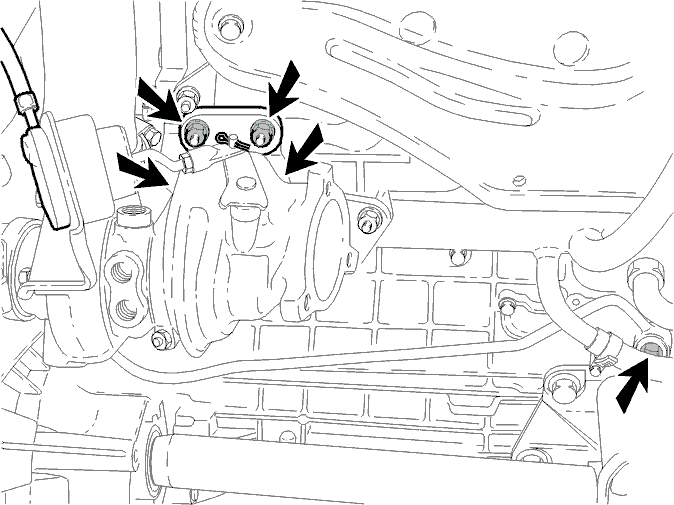

Fig 1: Removing Turbocharger (TC)

GLL114898

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting nuts securing the turbocharger (TC) to the exhaust manifold
Remove the hoses from the turbocharger (TC) control valve. Mark up the hoses
Remove the turbocharger from the exhaust manifold
Carefully pull the return tube out of the cylinder block
Remove the turbocharger (TC) by turning it
Cover the openings on the engine.
