Turbocharger (TC), installing

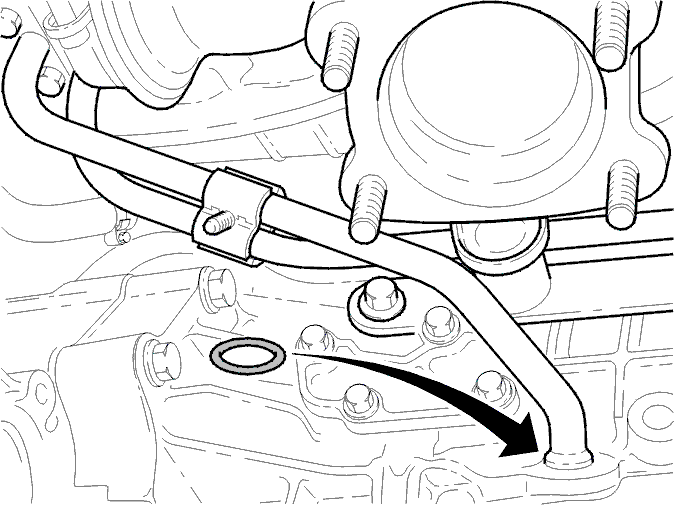

Fig 1: Installing New O-Ring On Oil Return Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the exhaust manifold mating surfaces carefully.

Install a new gasket on the exhaust manifold.

Install the turbocharger (TC) on the exhaust manifold.

Install a new O-ring on the oil return line.

Insert the oil return line in the cylinder block.

Tighten the nuts. Tighten to 45 Nm  .
