Turbocharger (TC) upper charge air pipe, installing

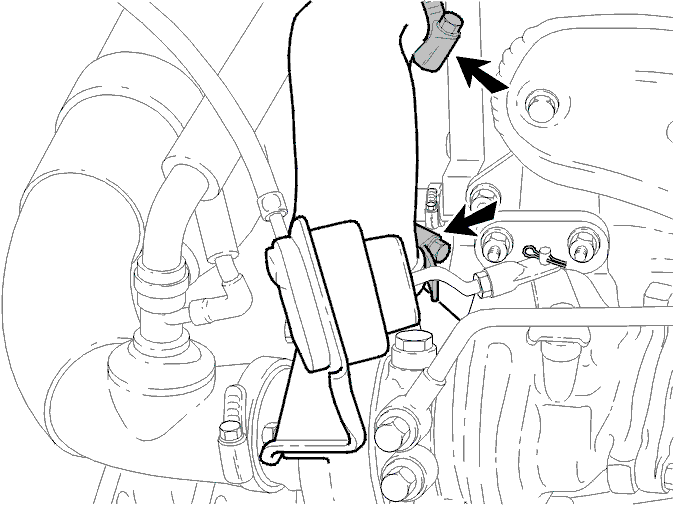

Fig 1: Removing/Installing Turbocharger (TC) Upper Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the upper charge-air pipe. Tighten to 6 Nm
• the cover over the connector.
