Heat shield firewall, installing

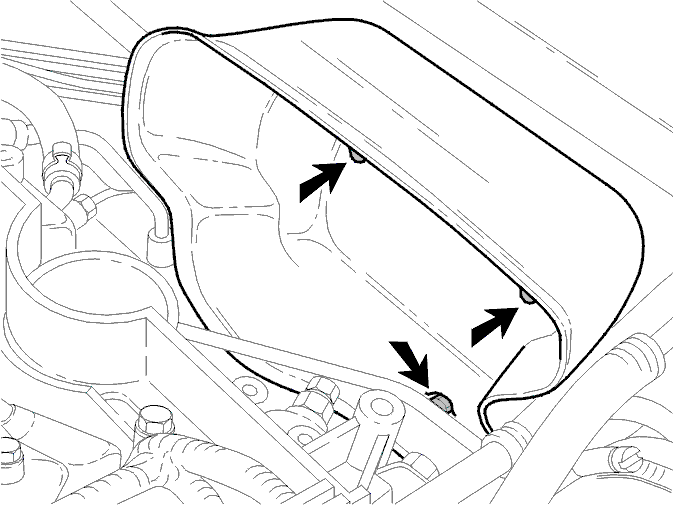

Fig 1: Removing/Installing Firewall Heat Shield

GLL114786

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the heat shield. Tighten the nuts.
